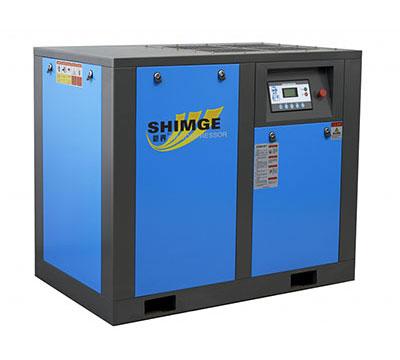

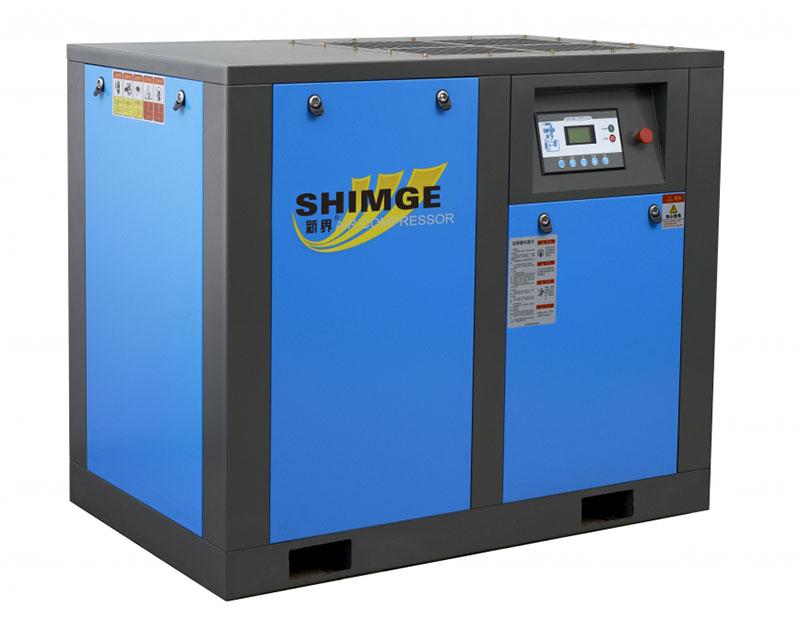

Rotary Screw Air Compressor

Application:

SHIMGE produced rotary screw air compressor has a power of 7.5-132kW, characterized by low noise, low energy consumption, large air supply, dry and clean air. This compressor can provide gas power to large and medium factories and multi production lines. It is suited for factories having high requirements on gas displacement and gas quality. We can provide standard product models and follow customers’ requirements to equip corresponding parts to assemble screw air compressors meeting various demands.

Features:
  • Rotary screw air compressor compress the air through the engaging of female and male rotors.
  • Adopting Germany AERZEN pump head, it has high efficiency and low energy consumption without oil leaking.
  • Digital display panel and intelligent operating system allows regular reminding of accessories maintenance and replacement, real-time display of using condition and timely warning of equipment faults.
Parameters:
MODEL Power Displacement Discharge
Pressure 		Outlet
connector
size 		Net Weight Outer Size
KW HP m³/min MPA inch kg mm
SGF7.5 7.5 10 1.2 0.7 3/4 350 890*650*920
1.1 0.8
0.9 1
0.8 1.3
SGF11 11 15 1.8 0.7 1 450 1080*850*1125
1.6 0.8
1.4 1
1.1 1.3
SGF15 15 20 2.6 0.7 1 480 1080*850*1125
2.4 0.8
2.1 1
1.7 1.3
SGF18.5 18.5 25 3.1 0.7 1 580 1150*900*1320
2.9 0.8
2.6 1
2.2 1.3
SGF22 22 30 3.6 0.7 1 580 1150*900*1321
3.5 0.8
3 1
2.5 1.3
SGF30 30 40 5.2 0.7 1.5 780 1280*1000*1460
5 0.8
4.5 1
3.7 1.3
SGF37 37 50 6.5 0.7 1.5 820 1280*1000*1461
6.2 0.8
5.6 1
4.8 1.3
SGF45 45 60 7.6 0.7 1.5 900 1380*1050*1500
7.3 0.8
6.5 .0.
5.6 1.3
SGF55 55 75 10.5 0.7 2 1380 1800*1200*1680
9.6 0.8
8.5 1
7.5 1.3
SGF75 75 100 13 0.7 2 1500 1800*1200*1681
12 0.8
11 1
9.8 1.3
SGF90 90 125 16.5 0.7 2 1900 2400*1300*1700
15 0.8
13.8 1
12.1 1.3
SGF132 132 180 24 0.7 2.5 2400 2700*1320*1850
22.5 0.8
20 1
17.1 1.3
