Gasoline Air Compressor

The gasoline air compressor is applicable to fields without electricity. It has a strong power, easy operation, sufficient displacement, low energy consumption and small vibration. This compressor can also run all day with no interruptions. It features a separate cylinder design, as well as a large displacement, simple shape and easy maintenance.

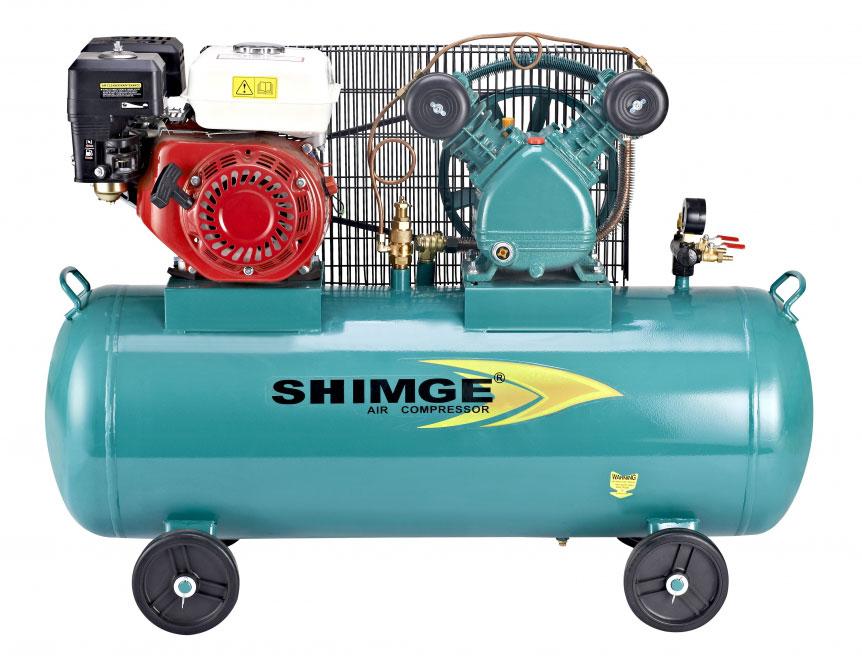

V-Shape Portable Gasoline Air Compressor

The V-shape portable gasoline air compressor features a V-shaped double cylinder design. It has a large gas output to supply gas for two starting devices at the same time. This air compressor has fully enclosed steel wire protective net cover to ensure operator safety, and features a compact design, reasonable structure, beautiful appearance, and strong and durable supporting structure. It can be used in fields, and other locations with no power supply.

Detailed drawing
  • The copper relief valve features a high quality, accurate unloading pressure and a long service life.
  • Switch assembly
  • Wheel
  • Manual gasoline powered handle ensures 15,000 usage periods, and an optional electric power start
Parameters
Model
KW HP L/min CFM Bar Psi r/min Piston-NO. L L*D*H cm KGS
SG2051M 4 5.5 170 6 8 115 1050 2 100 115*42*85 75
Applications
  • Polishing
  • Pneumatic wrench
  • Pneumatic mixer
Features:
  • Our gasoline air compressor is equipped with motors from well-known brands such as LIFAN, HONDA, LONGXIN, etc., ensuring stable and reliable operation.
  • The tank block is made of Baosteel high quality steel plate with a thickness of 2.5mm. Its surface is finished with polishing, and made using an automatic welding process and digitally controlled automatic operation. The bedplate and footing feature an integral bending process, ensuring a streamlined designed, high strength and deformation resistance.
  • The muffler is equipped with an enlarged filter element to better eliminate the noise. Thus the machine has longer service life and lower noise.
  • The triangular belt is consumable. With the use of high quality rubber as the raw material, the belt has small elongation, stable performance, strong flexibility and long life span.
  • The gasoline air compressor uses an enlarged contactor and precise thermal protector to ensure stable and safe motor operation.
  • Using an independently produced energy-efficient motor which uses the copper wire as raw material, the machine can start and run normally under voltage fluctuations within +/- 25%. The compressor operates normally for over 5,000 hours.
  • Gasoline air compressors feature high quality and reliability, with a one-year warranty.
