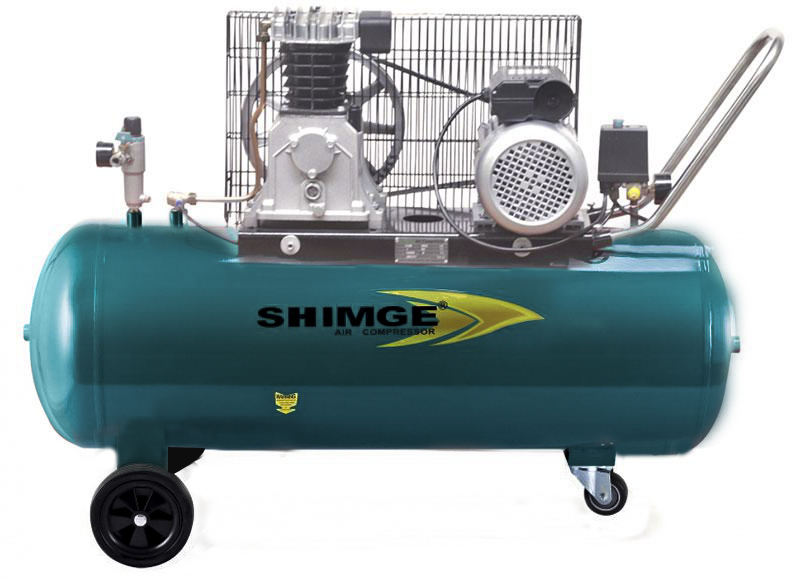

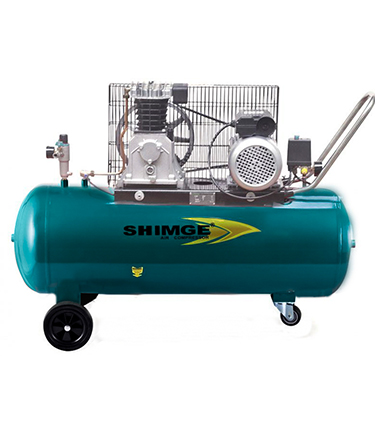

2HP 100L, Belt Driven Compressor

The belt driven compressor has an oil-water separator, thus ensuring the exhausted air is drier and cleaner. It uses the latest second generation parallel bar connected air pump, which features a high efficiency, low consumption and no oil leakage when compared to the first generation products. This air compressor weighs 89kg, and uses universal casters for support and movement, making it easy to install with very little vibration.

Detailed drawing
  • Universal casters: it is smooth and unobstructed in 360 degrees.
  • Oil-water separator
  • Plastic smooth wheel
  • High quality U-type stainless steel handle: it has a high bearing strength and long service life.
Parameters
Model
KW HP L/min CFM Bar Psi r/min Piston-NO. L L*D*H cm KGS
SG2055 1.5 2 200 7.1 8 115 1050 2 100 115*45*85 89
