Belt drive air compressors use a motor to drive the belt, then drive compressor operation. It can be used in conjunction with pneumatic grinders, jackhammers, pneumatic wrenches, professional spray guns and other various large, medium and small pneumatic tools for the mold industry, spraying operations, mining industries, ship industries and more.
It features a strong pneumatic power for small factories or industrial equipment, and is known for its stable performance, graceful style, sufficient displacement, low energy consumption and small vibration. It can operate for a continuous 24 hours, without sacrificing its reliable operation or long service life.

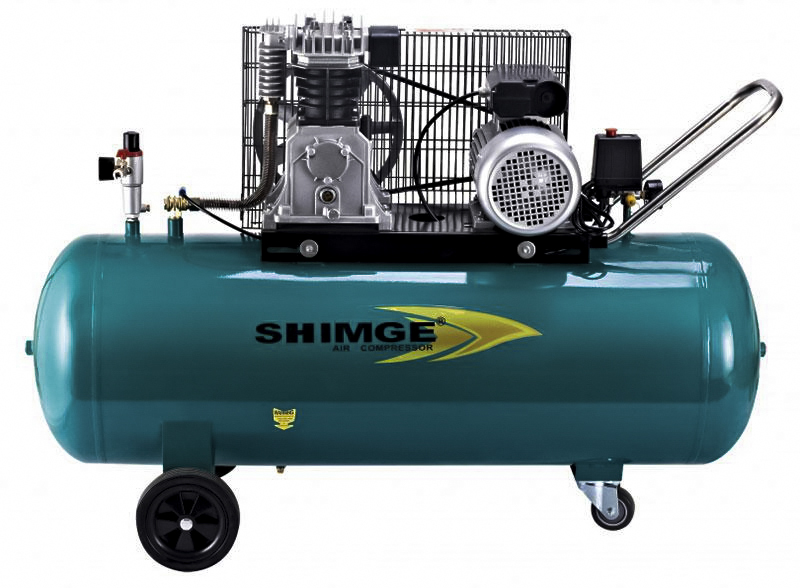

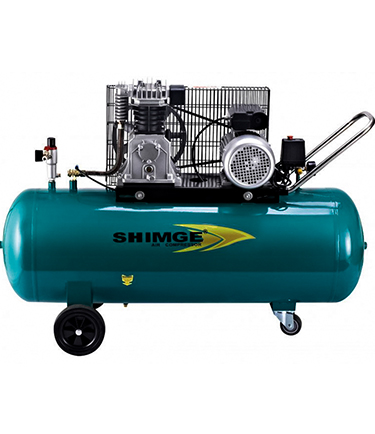

3HP 150L, Portable Air Cooled Compressor
This air cooled compressor is equipped with an oil-water separator and high quality intercooler. This helps to cool the compressed air, ensuring the stability of compressed air in the gas tank and prolongs the compressor service life. Due to its strong power, it can provide 300L of compressed air per minute, which is then used for a driving machine, grinding machine, or other large machines.
Detailed drawing
Universal casters
Equipped with oil-water separator, the discharged gas is drier and cleaner.
Stainless steel handle
Intercooler
Parameters
Model
KW
HP
L/min
CFM
Bar
Psi
r/min
Piston-NO.
L
L*D*H cm
KGS
SG2070
2.2
3
300
10.6
8
115
1050
2
150
131*50*88
117
Applications
Assembly line
Polishing
Pneumatic mixer
Packaging
Features of belt drive air compressor:
The compressor is durable due to the use of a high quality cylinder that is produced using special processes in order to be professional paired with the piston and piston ring.
The improved base plate design reduces the machine size and reduces transportation costs, making it meet a variety of market demands.
The gas tank is automatically and precisely produced. With the use of automatic LINKON welding equipment, and NC automatic operation, the welding seam is tight, with a stable quality. The real bearing pressure is more than 6 times the design pressure in order to ensure the safety. The integrated bending bedplate and footing give the equipment a sleek appearance, a high strength, and outstanding deformation prevention.
Its appearance is the result of an integral spraying process that is formed after a one-time high temperature baking process. It is economically friendly, safe, beautiful and durable.
The high quality varnished wire is stable, and ensures the motor features a low temperature, high efficiency and excellent startup, even under a low voltage. By using a pure copper wire, the compressor will start and operate normally when the voltage fluctuates within +/- 25%. The continuous operation can continue for up to more than 5,000 hours.
Each compressor in this series has passed EU CE certification, thus meeting the requirements of various countries.
Our air compressors have high quality and reliability, with one-year quality assurance.
