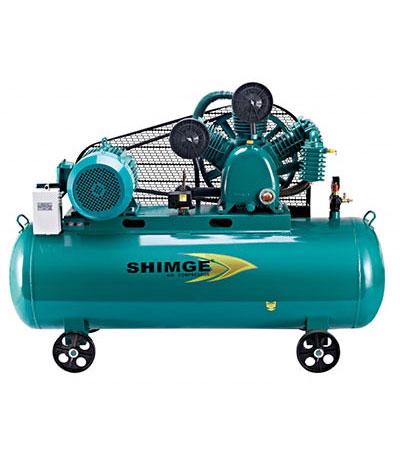

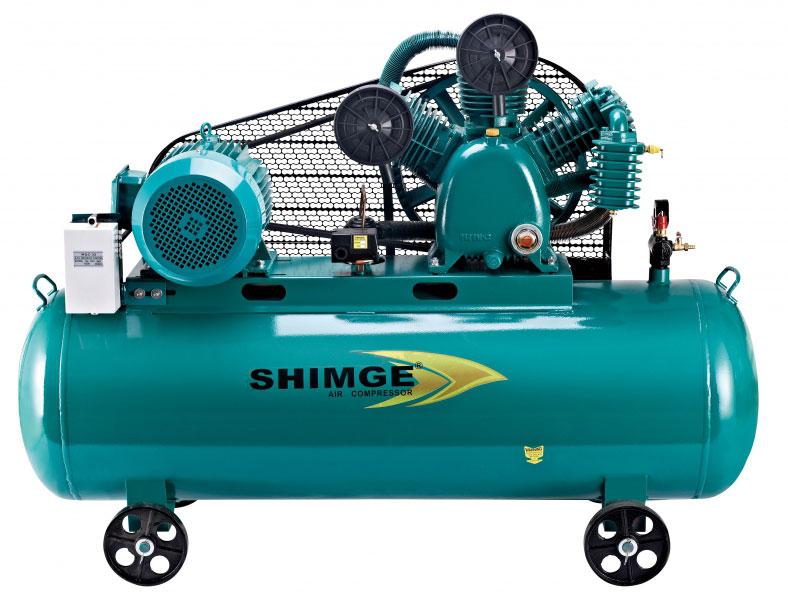

10HP High Pressure Reciprocating Compressor

The 10HP high pressure reciprocating compressor uses a high quality and efficient motor. Designed as a low speed compressor, it runs more quietly than other equipment, and features a power consumption that is only 80% of other similar products, thus giving it a longer service life. The piston ring is single cast using a Japanese manufacturing process, which gives it an excellent elasticity, and allows for an ultra-low lubricating oil loss. The displacement of this compressor reaches 800L/min, and its fan blades utilize patented technology for an excellent cooling effect. It is suitable for various small processing plants, auto repair shops and much more. It is also suitable for simultaneous usage requirements for more than 5 small pneumatic tolls.

Model
	KW	HP	L/min	CFM	Bar	Psi	r/min	Piston-NO.	L	L*D*H cm	KGS
SGJ2090T	7.5	10	800	28.3	12.5	180	950	3	250	164*64*113	252
