Direct Drive Air Compressor

The direct drive air compressor features an efficiency of 98-99%, with almost no energy loss. This makes it the most efficient air compressor drive mode when compared to other air compressor types of the same power, and allows it to also offer a larger displacement.

Our direct drive air compressor is small, lightweight and easy to carry. Customers can easily move and carry it, making it extremely flexible. This series of air compressors is applicable to pneumatic nail guns, small area spray painters, glue dispensers, foaming machines and other small equipment.

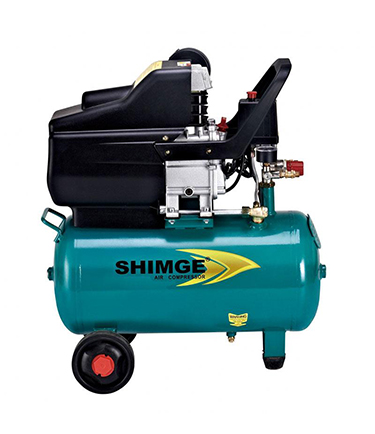

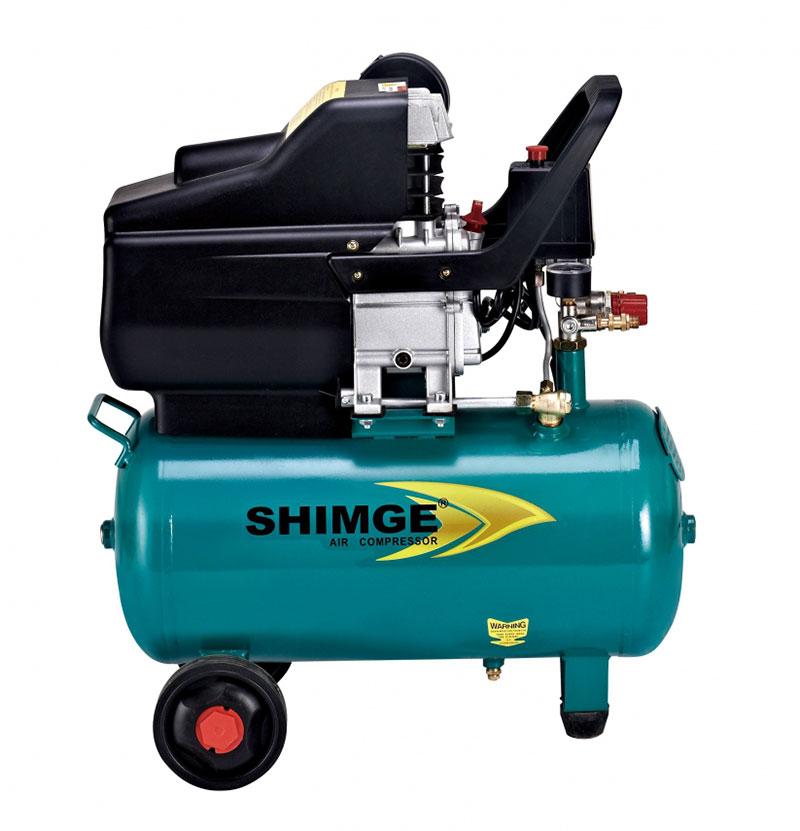

2HP 24L, Direct Drive Air Compressor

This direct drive air compressor is equipped with a 2 HP high power motor, large cylinder and square crankcase. With a short air intake time and 198L/min displacement, its temperature rise is less than 80K, allowing it to easily drive large displacement tools like a spray gun. Due to the weight of only 23.5kg, it is easy to carry and move, making it applicable to a variety of working conditions.

Detailed drawing

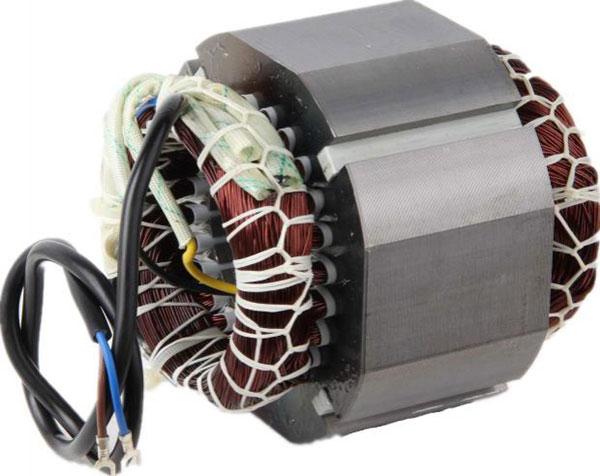

Thickened motor
The pressure regulating valve can adjust the discharge pressure in real time in order to adapt to the usage requirements of different tools.

Parameters

Model
Model	KW	HP	L/min	CFM	Bar	Psi	r/min	Piston-NO.	L	LDH cm	KGS
SGBM9031	1.5	2	198	7	8	115	2850	1	24	592962	23.5

Applications

Spray gun
Dust blowing
Pneumatic tool
Inflating

Features:

The gas tank, motor, crankcase, fan cover, bracket and other major accessories are all produced by SHIMGE. With an independent productivity of 85%, rapid delivery is ensured, and we can also assemble different accessories in different combinations in order to meet the requirements for different working conditions and customized production.
We provide several inlet bell mouth design styles for customers to choose from in order to meet their different requirements
Due to the automatic wire embedding technology, the motor features a stable quality and high efficiency. It has been designed to offer a stronger power, and will easily start even when the voltage is within a range of 15% lower than standard voltage levels. If the temperature rise is controlled within 95K, the average motor service life is more than 5,000 hours.
The gas tank is produced using automated precision equipment that features a high efficiency and low defective rate. The tank is welded using a Lincoln welder in order to ensure a tight welding seam that will not be damaged under 40Bar, determined through a hydraulic test.
With an integral spraying process, the appearance is formed after a one time spraying and high temperature baking. This process is environmentally friendly, and ensures the surface is smooth and durable.
All products in this series have passed an EU CE certificate, proving the safe and reliable quality.
This product series features a one year warranty, and lifetime maintenance. We have a 24 hour hotline at 400-882-8983 in order to offer customers efficient, fast after sales services.
