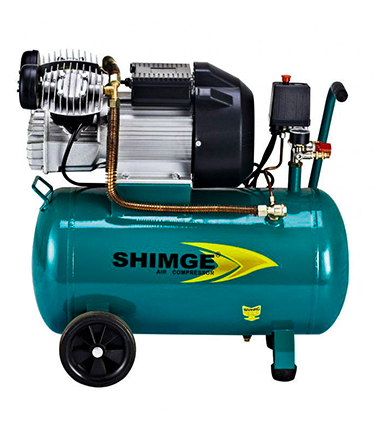

3HP 50L, V-Type Portable Air Compressor

The V-type portable air compressor has a 3.0HP high power motor and two cylinders, giving it a short air intake time and a displacement of 336L/minute. It features a dual capacitor design in order to protect the motor and stabilize the air compressor’s working efficiency.

Detailed drawing
  • Thickened motor
  • Pure copper high pressure pipe
Parameters
Model
KW HP L/min CFM Bar Psi r/min Piston-NO. L L*D*H cm KGS
SGV9631 2.2 3 336 11.8 8 115 2850 2 50 74*38*74 45
