The direct drive air compressor features an efficiency of 98-99%, with almost no energy loss. This makes it the most efficient air compressor drive mode when compared to other air compressor types of the same power, and allows it to also offer a larger displacement.
Our direct drive air compressor is small, lightweight and easy to carry. Customers can easily move and carry it, making it extremely flexible. This series of air compressors is applicable to pneumatic nail guns, small area spray painters, glue dispensers, foaming machines and other small equipment.

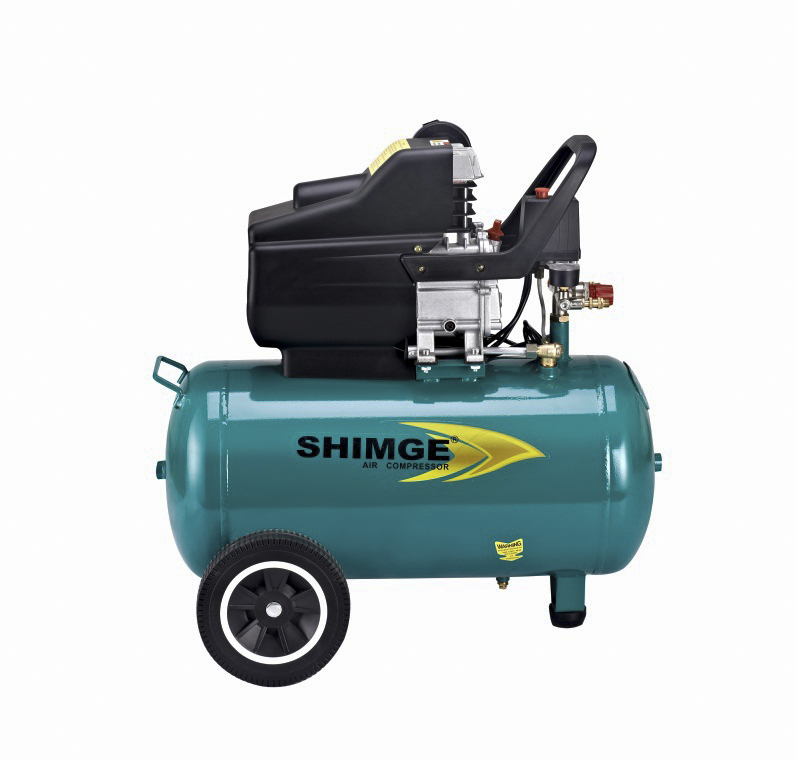

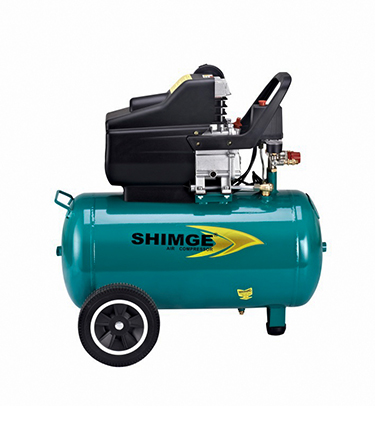

2HP 50L, Direct Drive Portable Air Compressor
This direct drive portable air compressor has a 50L gas tank, allowing it to be used for long periods of time after it has been inflated. The compressor uses a 2 HP motor to match the large cylinder, giving it a short charging period and a 198L/min displacement. It features triangular support, rear rubber wheels and a handle in order to facilitate machine movement and maintenance.
Detailed drawing

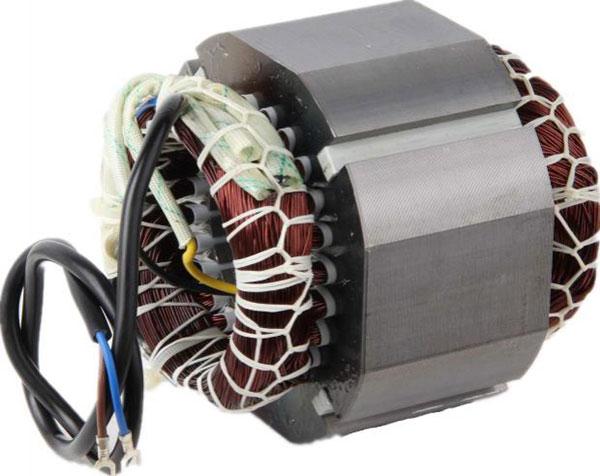

Thickened motor

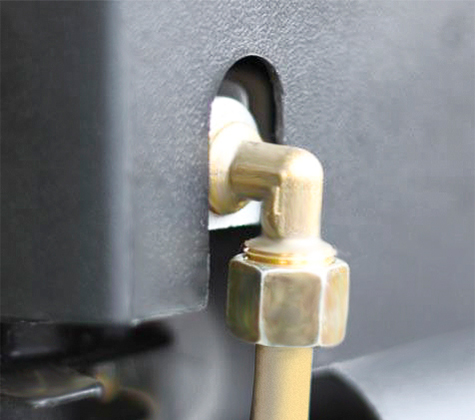

Pure copper elbow
Equipped with pressure regulating valve, the discharging pressure can be adjusted in real time to adapt to different working condition requirements.
Parameters
Model
KW
HP
L/min
CFM
Bar
Psi
r/min
Piston-NO.
L
L*D*H cm
KGS
SGBM9033
1.5
2
198
7
8
115
2850
1
50
74*32*71
31
Applications
Spray
gun
Dust
blowing
Pneumatic
tool
Inflating
Features:
The gas tank, motor, crankcase, fan cover, bracket and other major accessories are all produced by SHIMGE. With an independent productivity of 85%, rapid delivery is ensured, and we can also assemble different accessories in different combinations in order to meet the requirements for different working conditions and customized production.
We provide several inlet bell mouth design styles for customers to choose from in order to meet their different requirements
Due to the automatic wire embedding technology, the motor features a stable quality and high efficiency. It has been designed to offer a stronger power, and will easily start even when the voltage is within a range of 15% lower than standard voltage levels. If the temperature rise is controlled within 95K, the average motor service life is more than 5,000 hours.
The gas tank is produced using automated precision equipment that features a high efficiency and low
defective rate. The tank is welded using a Lincoln welder in order to ensure a tight welding seam that
will not be damaged under 40Bar, determined through a hydraulic test.
With an integral spraying process, the appearance is formed after a one time spraying and high temperature
baking. This process is environmentally friendly, and ensures the surface is smooth and durable.
All products in this series have passed an EU CE certificate, proving the safe and reliable quality.
This product series features a one year warranty, and lifetime maintenance. We have a 24 hour hotline
at 400-882-8983 in order to offer customers efficient, fast after sales services.
